9777-13 SAE flange connection, SFS - code 62 (STEEL)

Type

SFS (interlock) - code 62

Material

Fe/Zn

13 results

per page

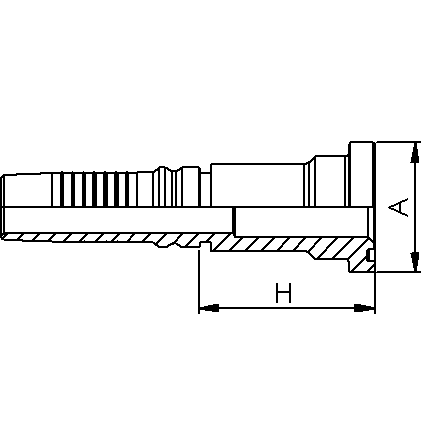

	Article	DN (inch)	DN (mm)	SAE	ØA	WP (bar)	PU	Stock	Listprice
	9777-13-12-12	3/4	20	3/4	41.3	420	1	In stock	€ 37,12
DN (inch) 3/4 DN (mm) 20 SAE 3/4 ØA 41.3 WP (bar) 420 more info »
	9777-13-16-12	3/4	20	1	47.6	415	1	In stock	€ 37,30
DN (inch) 3/4 DN (mm) 20 SAE 1 ØA 47.6 WP (bar) 415 more info »
	9777-13-12-16	1	25	3/4	41.3	415	1	In stock	€ 44,21
DN (inch) 1 DN (mm) 25 SAE 3/4 ØA 41.3 WP (bar) 415 more info »
	9777-13-16-16	1	25	1	47.6	415	1	Not in stock	€ 28,09
DN (inch) 1 DN (mm) 25 SAE 1 ØA 47.6 WP (bar) 415 more info »
	9777-13-20-16	1	25	1.1/4	54	415	1	In stock	€ 48,07
DN (inch) 1 DN (mm) 25 SAE 1.1/4 ØA 54 WP (bar) 415 more info »
	9777-13-16-20	1.1/4	32	1	47.6	415	1	In stock	€ 80,02
DN (inch) 1.1/4 DN (mm) 32 SAE 1 ØA 47.6 WP (bar) 415 more info »
	9777-13-20-20	1.1/4	32	1.1/4	54	415	1	Not in stock	€ 50,70
DN (inch) 1.1/4 DN (mm) 32 SAE 1.1/4 ØA 54 WP (bar) 415 more info »
	9777-13-24-20	1.1/4	32	1.1/2	63.5	415	1	In stock	€ 73,29
DN (inch) 1.1/4 DN (mm) 32 SAE 1.1/2 ØA 63.5 WP (bar) 415 more info »
	9777-13-20-24	1.1/2	40	1.1/4	54	415	1	Not in stock	€ 81,65
DN (inch) 1.1/2 DN (mm) 40 SAE 1.1/4 ØA 54 WP (bar) 415 more info »
	9777-13-24-24	1.1/2	40	1.1/2	63.5	415	1	In stock	€ 71,82
DN (inch) 1.1/2 DN (mm) 40 SAE 1.1/2 ØA 63.5 WP (bar) 415 more info »
	9777-13-32-24	1.1/2	40	2	79.4	345	1	Not in stock	€ 144,47
DN (inch) 1.1/2 DN (mm) 40 SAE 2 ØA 79.4 WP (bar) 345 more info »
	9777-13-24-32	2	50	1.1/2	63.5	415	1	Not in stock	Request an offer
DN (inch) 2 DN (mm) 50 SAE 1.1/2 ØA 63.5 WP (bar) 415 more info »
