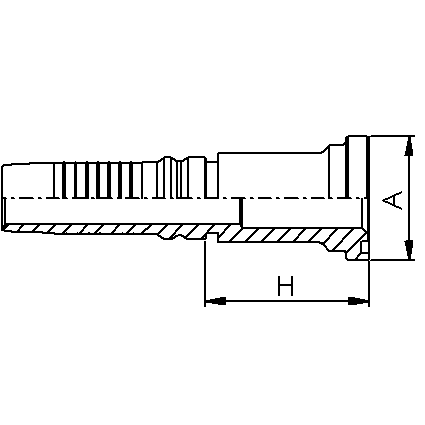

9770-13 SAE flange connection, SFL - code 61 (STEEL)

Type

SFL (interlock) - code 61

Material

Fe/Zn

	Article	DN (inch)	DN (mm)	SAE	ØA	WP (bar)	PU	Stock	Listprice
	9770-13-12-12	3/4	20	3/4	38	350	1	In stock	€ 31,69
DN (inch) 3/4 DN (mm) 20 SAE 3/4 ØA 38 WP (bar) 350 more info »
	9770-13-16-12	3/4	20	1	44.5	350	1	In stock	€ 38,28
DN (inch) 3/4 DN (mm) 20 SAE 1 ØA 44.5 WP (bar) 350 more info »
	9770-13-16-16	1	25	1	44.5	350	1	Not in stock	€ 38,18
DN (inch) 1 DN (mm) 25 SAE 1 ØA 44.5 WP (bar) 350 more info »
	9770-13-16-20	1.1/4	32	1	44.5	280	1	Not in stock	Request an offer
DN (inch) 1.1/4 DN (mm) 32 SAE 1 ØA 44.5 WP (bar) 280 more info »
	9770-13-20-16	1	25	1.1/4	51	280	1	In stock	€ 53,16
DN (inch) 1 DN (mm) 25 SAE 1.1/4 ØA 51 WP (bar) 280 more info »
	9770-13-20-20	1.1/4	32	1.1/4	51	280	1	In stock	€ 50,27
DN (inch) 1.1/4 DN (mm) 32 SAE 1.1/4 ØA 51 WP (bar) 280 more info »
	9770-13-24-20	1.1/4	32	1.1/2	60.3	210	1	In stock	€ 69,93
DN (inch) 1.1/4 DN (mm) 32 SAE 1.1/2 ØA 60.3 WP (bar) 210 more info »
	9770-13-24-24	1.1/2	40	1.1/2	60.3	210	1	In stock	€ 66,58
DN (inch) 1.1/2 DN (mm) 40 SAE 1.1/2 ØA 60.3 WP (bar) 210 more info »
	9770-13-24-32	2	50	1.1/2	60.3	210	1	Not in stock	€ 106,68
DN (inch) 2 DN (mm) 50 SAE 1.1/2 ØA 60.3 WP (bar) 210 more info »
	9770-13-32-24	1.1/2	40	2	71.5	210	1	Not in stock	€ 259,33
DN (inch) 1.1/2 DN (mm) 40 SAE 2 ØA 71.5 WP (bar) 210 more info »
	9770-13-32-32	2	50	2	71.5	210	1	In stock	€ 230,57
DN (inch) 2 DN (mm) 50 SAE 2 ØA 71.5 WP (bar) 210 more info »
